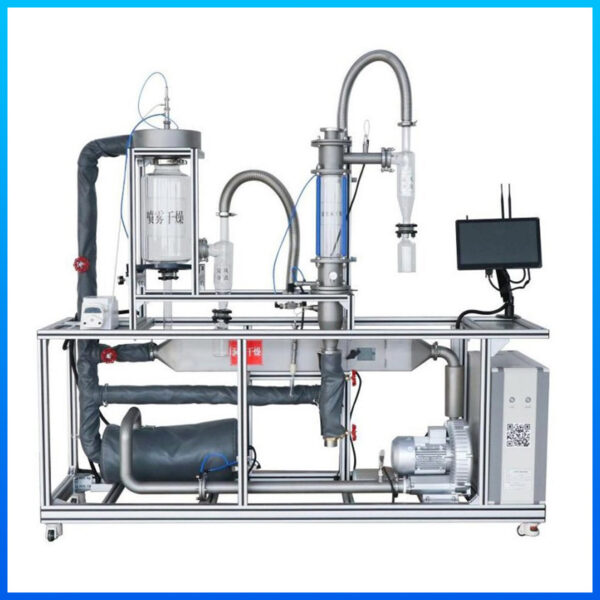

Multi – functional Drying Experiment Device
Students can learn the structures of tunnel dryers, fluidized bed dryers, and spray dryers through this device; master the determination methods of drying curves and drying rate curves; understand the significance of the process for determining the drying rate curve; and gain knowledge of measuring the humidity of moist air using wet-bulb and dry-bulb temperatures.

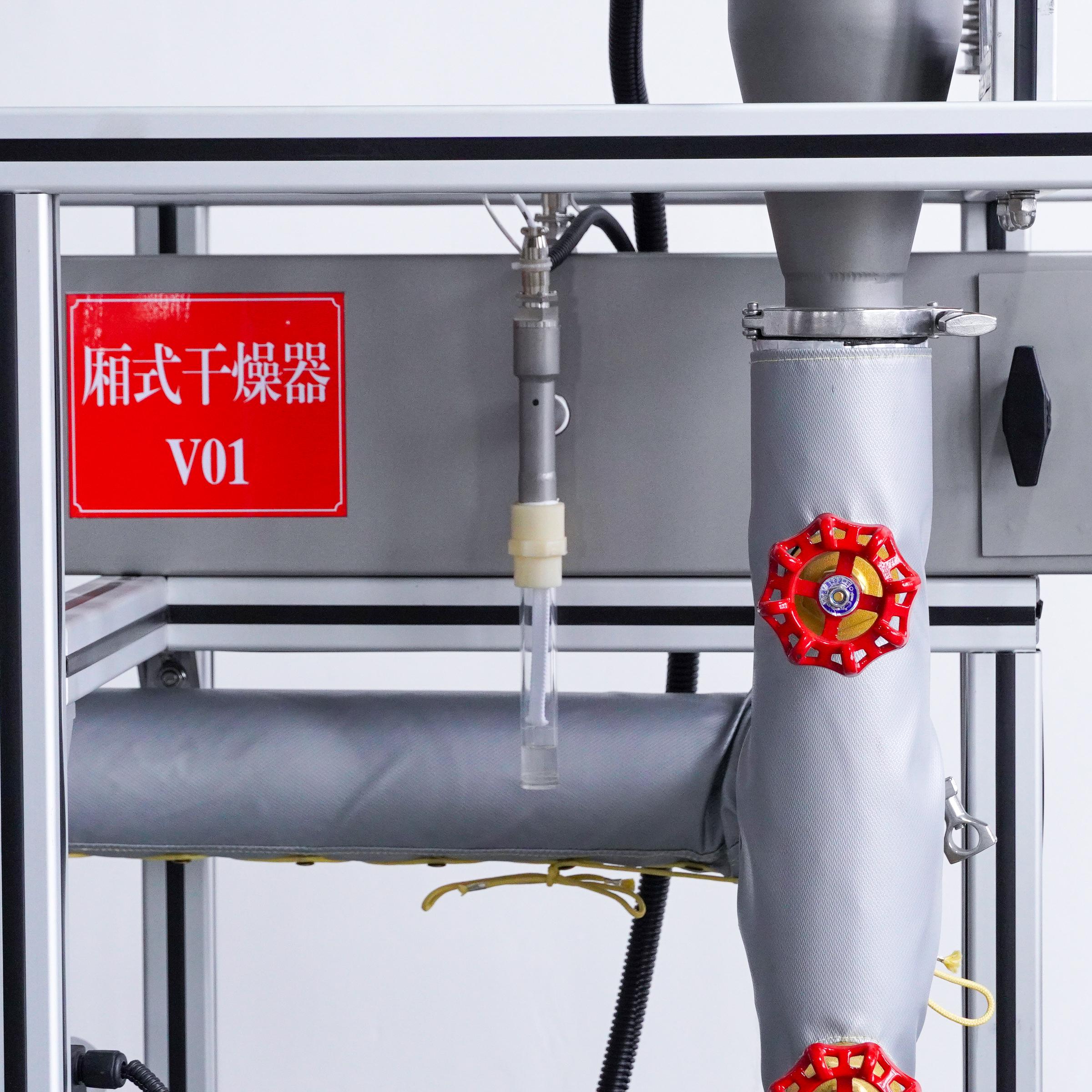

♥ 1. Integrates three drying forms into one: tunnel drying, fluidized bed drying, and spray drying;
♥ 2. Capable of measuring the drying rate curve of tunnel drying and the drying curve of fluidized bed drying, and comparing the similarities and differences of different drying processes;

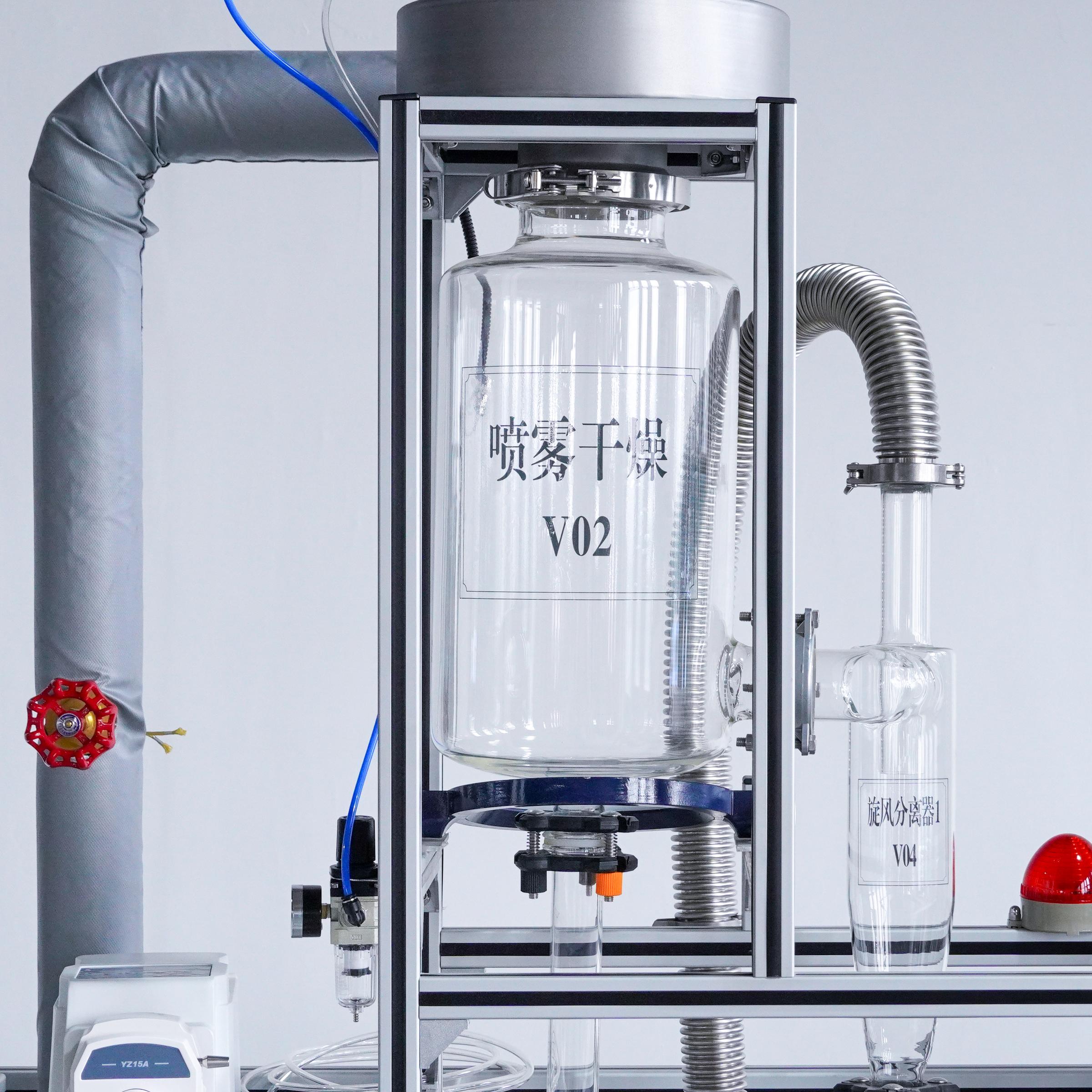

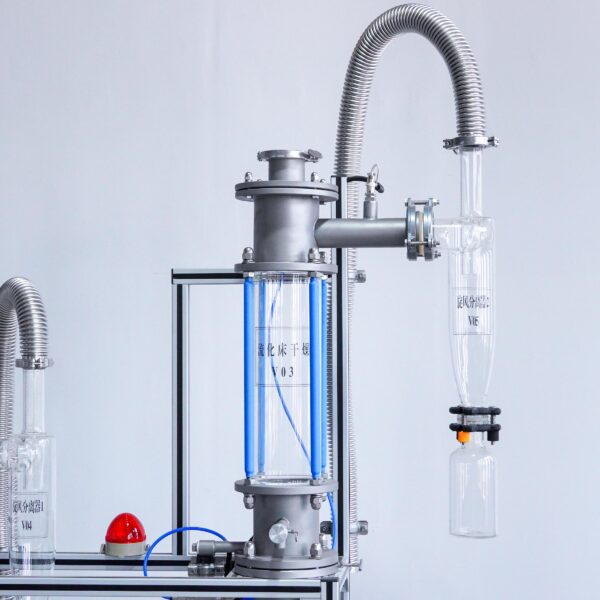

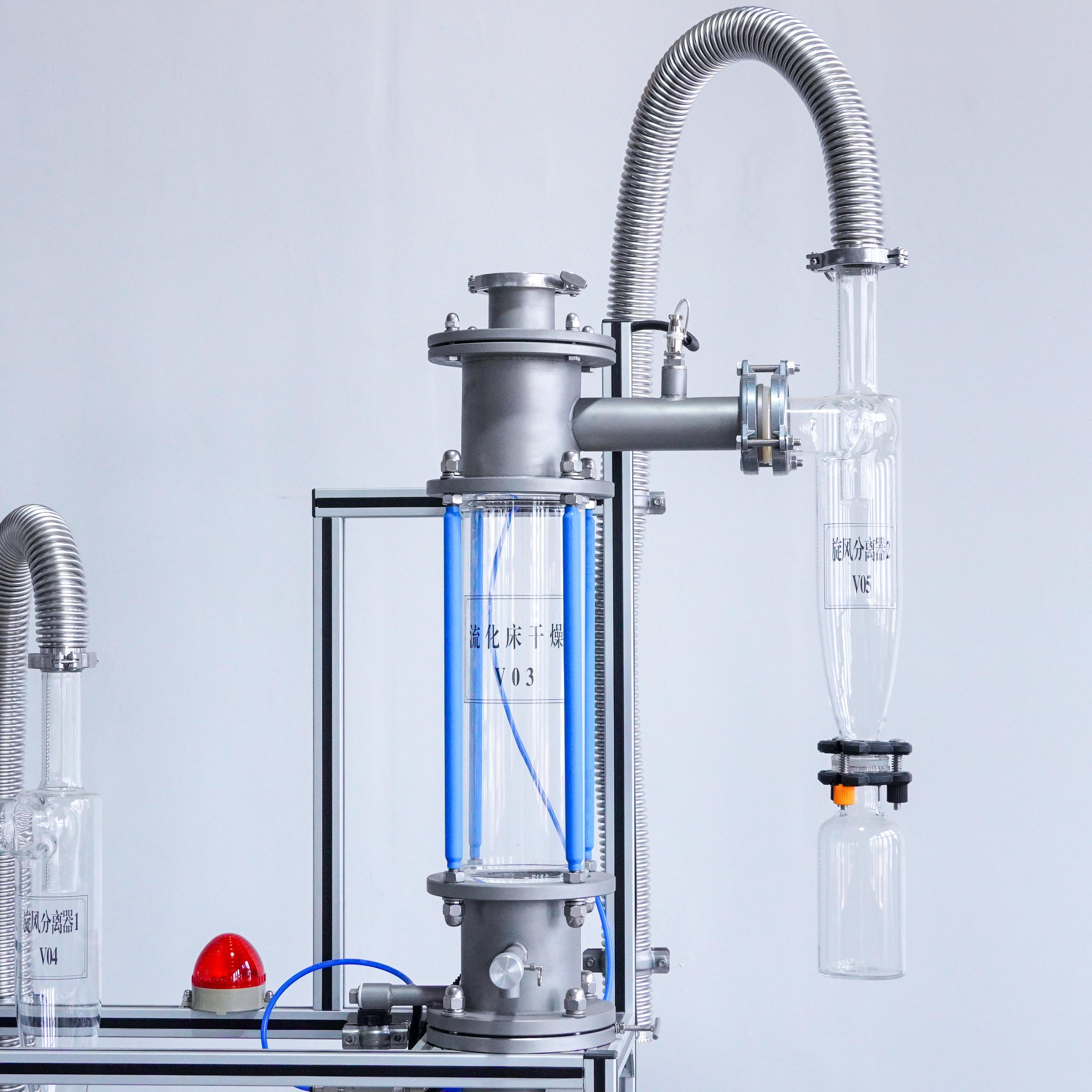

♥ 3. Both the spray drying tower and fluidized bed drying tower are made of transparent materials, with transparent cyclone separators connected to their air outlets, allowing observation and analysis of the internal structures and operating states of the spray drying tower, fluidized bed drying tower, and cyclone separator;

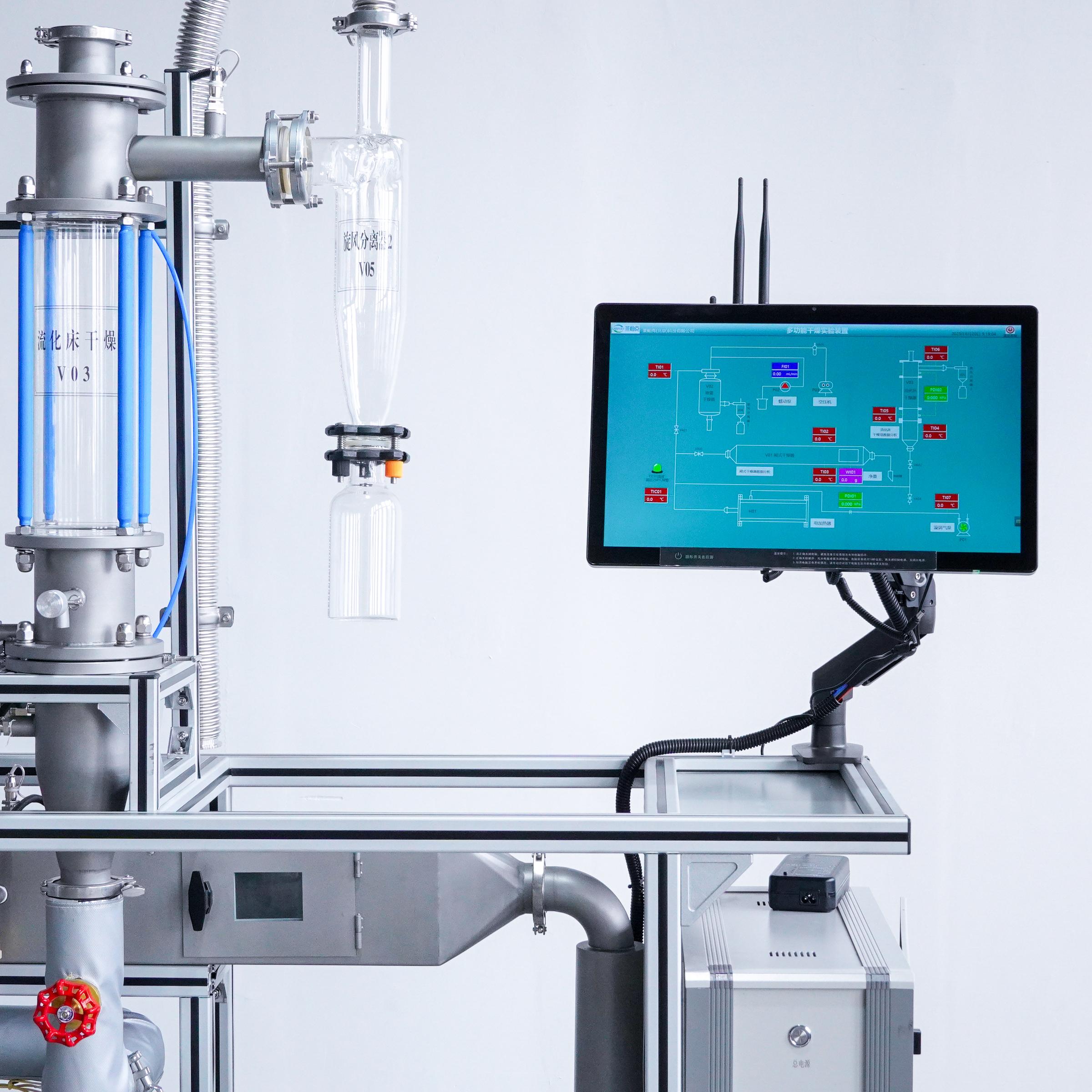

♥ 4. Able to present every detail of the multi-functional drying device in an all-round and multi-angle manner through animation, simulating the mass transfer phenomena during the drying process;
♥ 5. Equipment appearance and dimensions: The device is required to adopt a high-quality aluminum alloy frame with casters, with dimensions no larger than 2200mm×580mm×1980mm (length×width×height);
