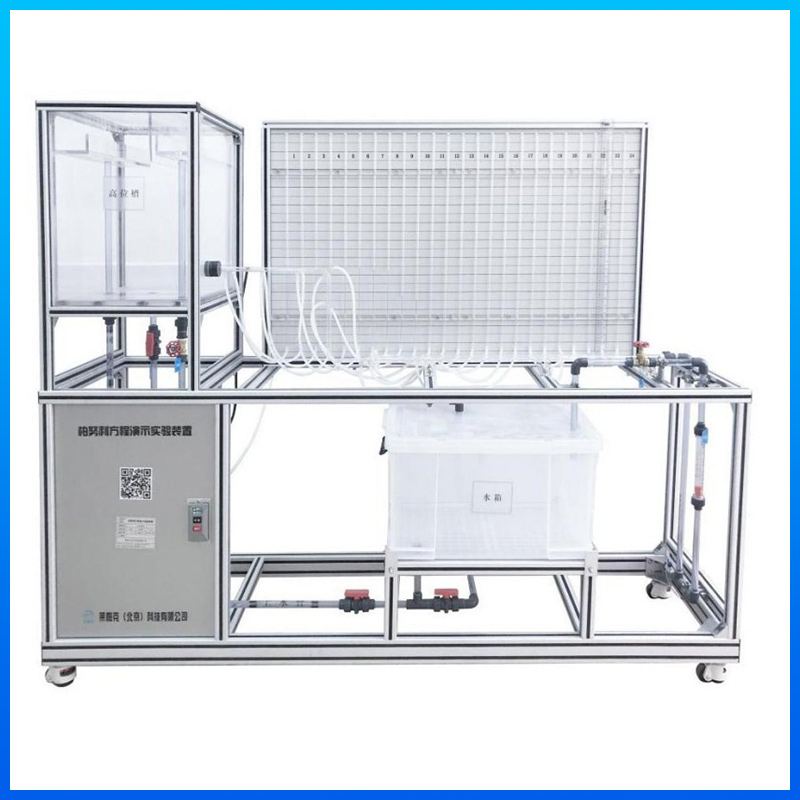

Bernoulli’s Equation Demonstration Experiment Device

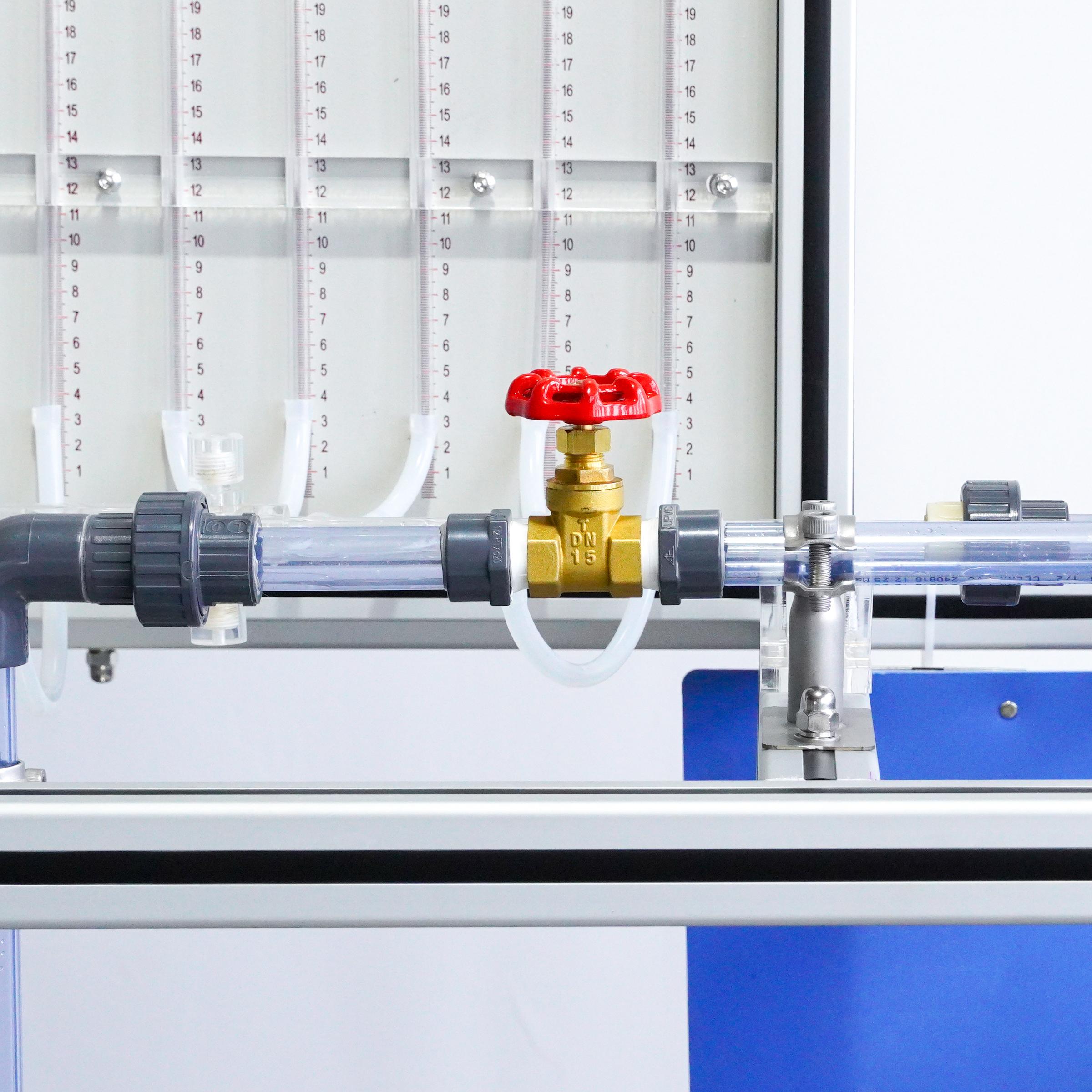

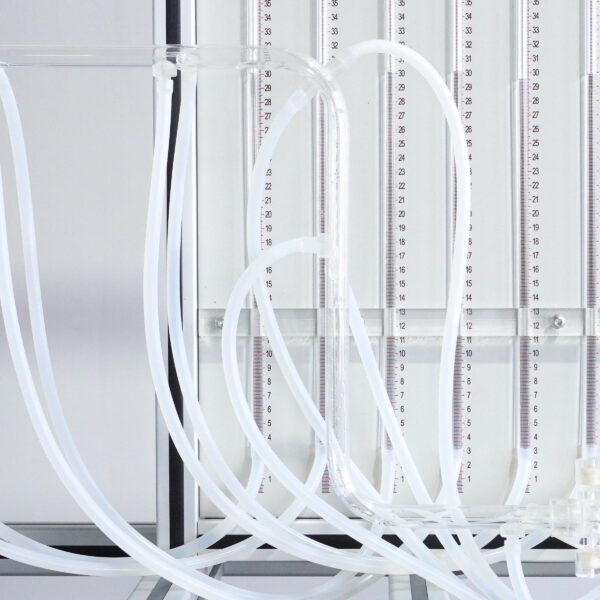

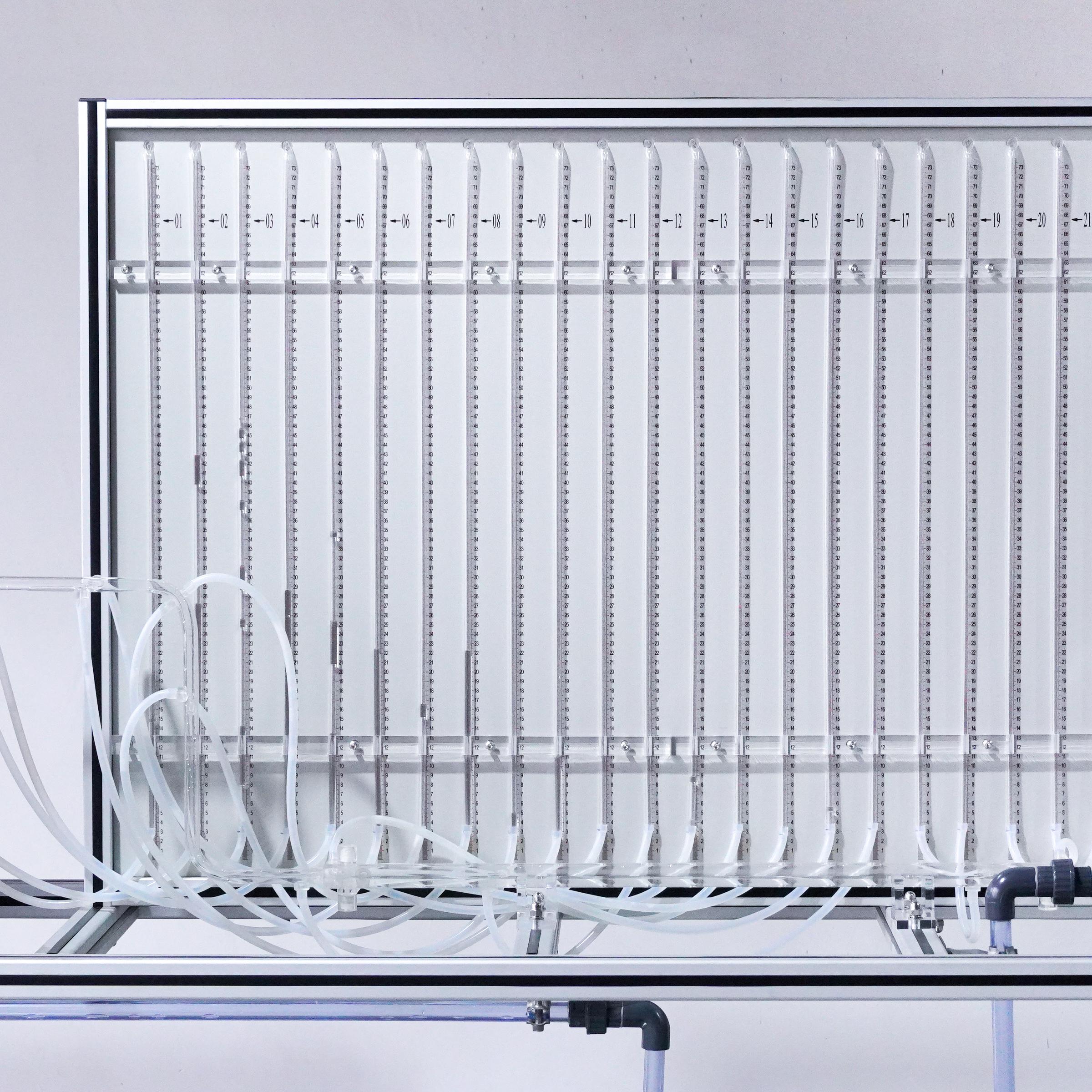

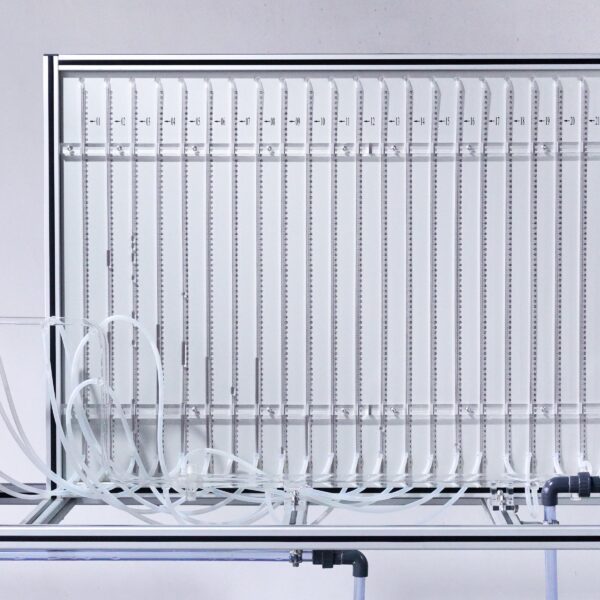

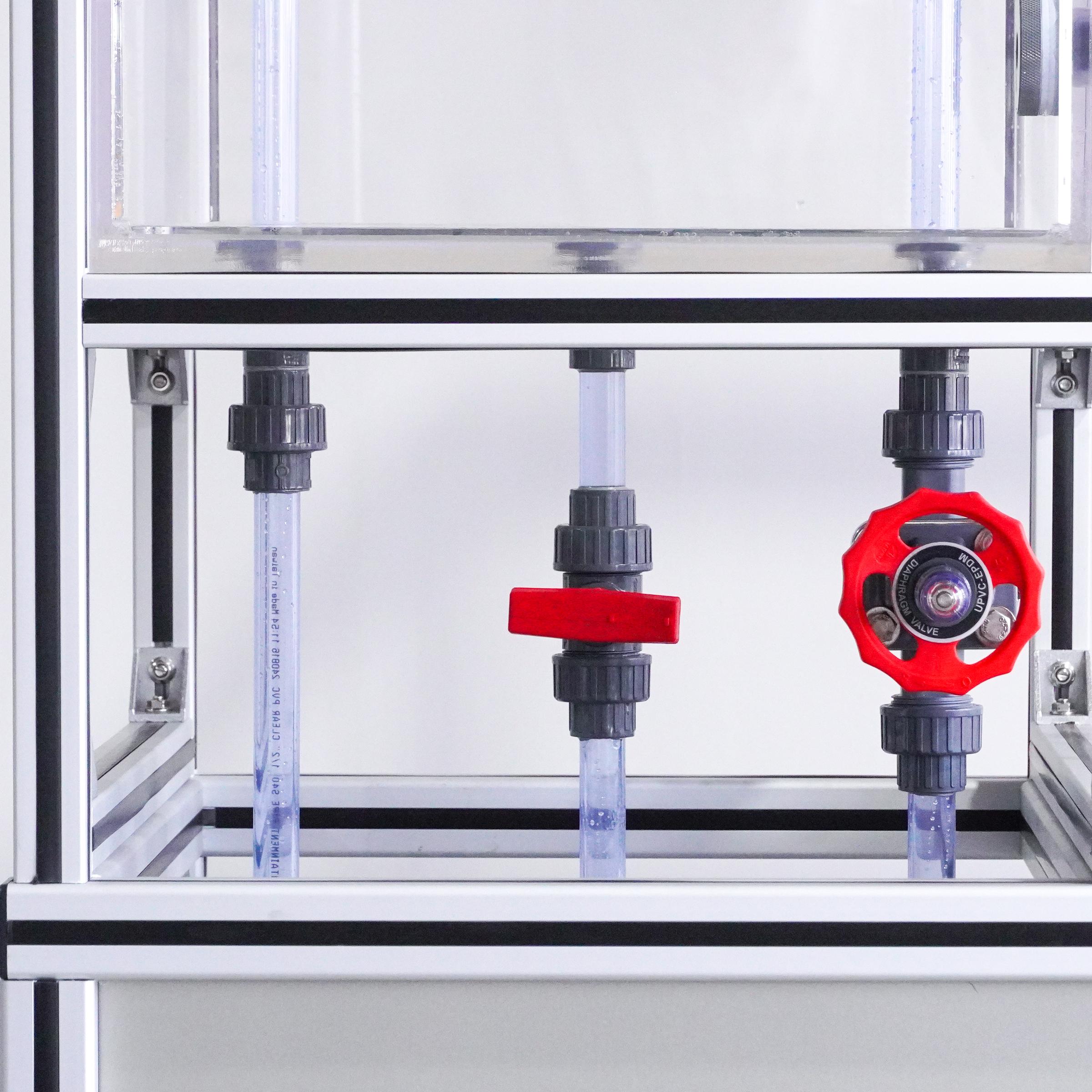

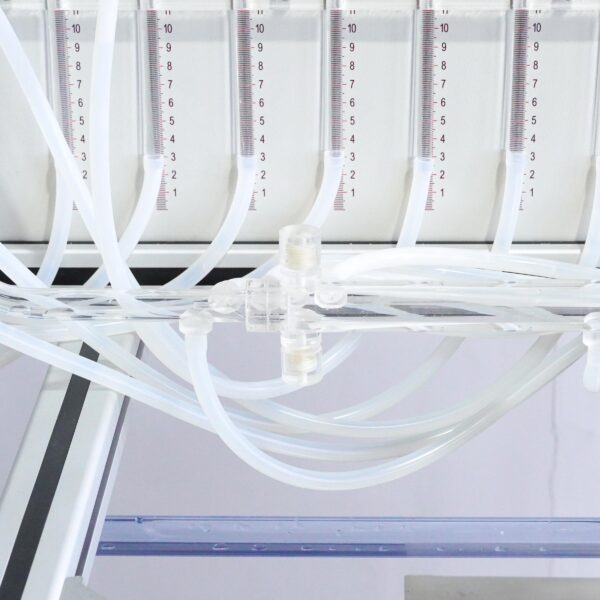

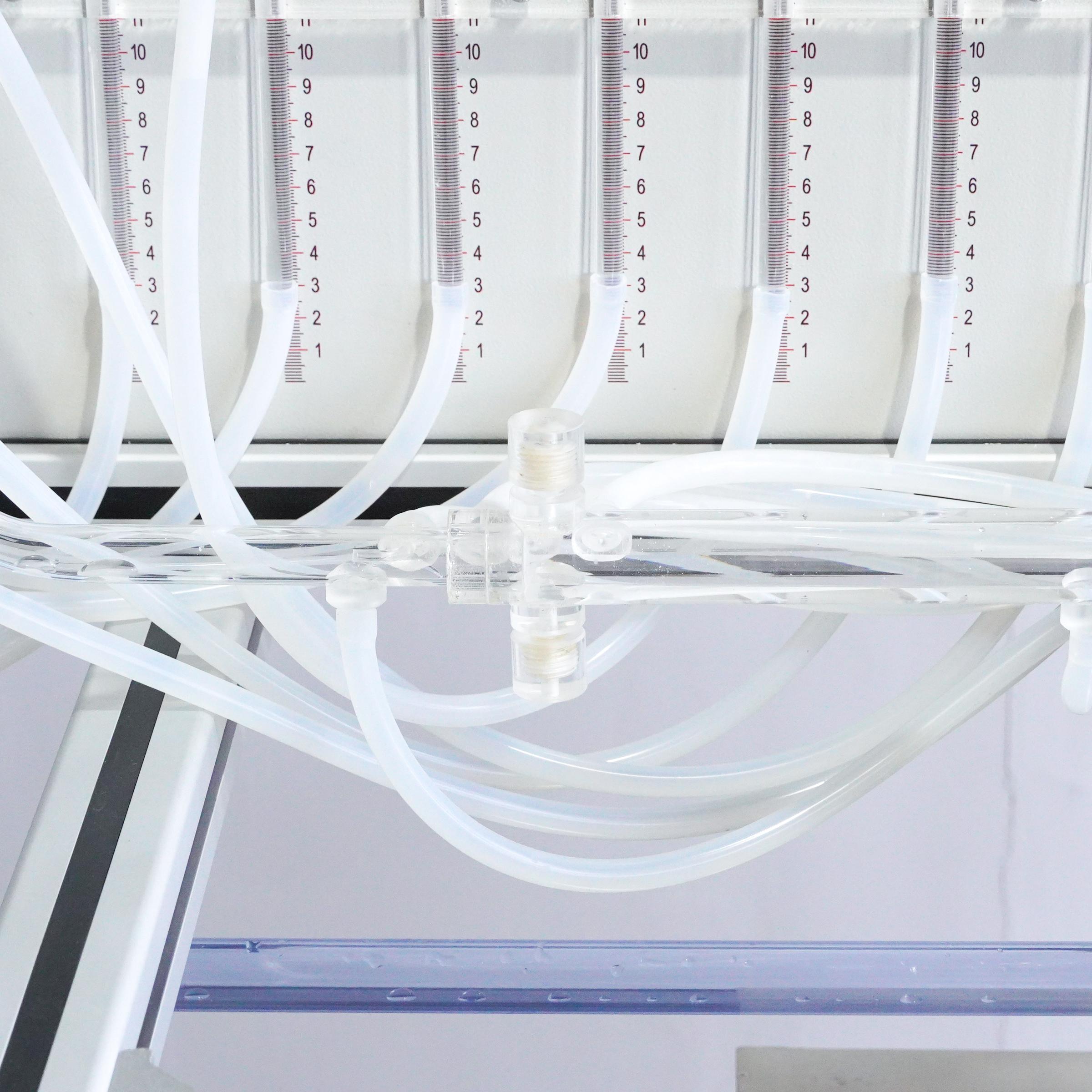

The device consists of a circulation pump, rotameter, acrylic glass pipeline, circulating water tank, and experimental panel. Pressure-measuring glass tubes and inlet/outlet valves are installed on the pipeline. There are 23 pressure measurement points in the pipeline, with two vent points set at the abrupt expansion and contraction sections, and a drain port installed below the pipeline.
♥ 1. Suitable for majors such as Applied Chemistry, Chemical Engineering and Technology, and Energy Engineering;
♥ 2. Understand the relationships of mutual transformation between various forms of mechanical energy (kinetic energy, potential energy, static pressure energy) and the external manifestations of mechanical energy in a steady flow process, and apply the Bernoulli equation to analyze various observed phenomena;
♥ 3. Understand the layout schemes of pressure measurement points and the influence of their geometric structure on pressure indication;
♥ 4. Rigid PVC transparent pipelines make experimental phenomena more intuitive;
♥ 5. Equipment appearance and dimensions: The device is required to adopt a high-quality aluminum alloy frame with casters, with dimensions no larger than 2200mm×580mm×1780mm (length×width×height);
