Compression Refrigeration Performance Determination Experiment Device

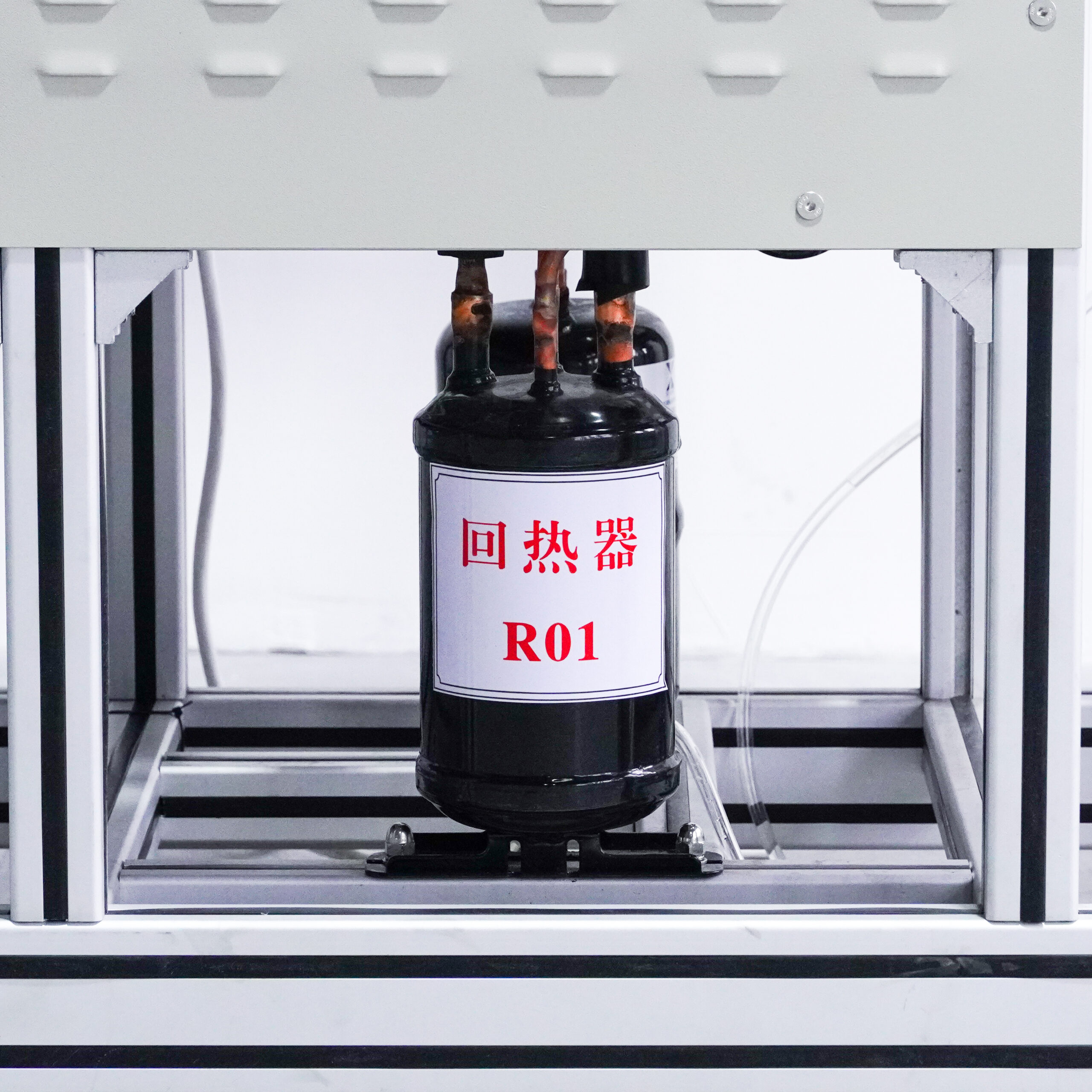

Through this device, students can learn the principles of measuring the compressor refrigeration coefficient and the overall unit refrigeration coefficient, as well as related components; understand the impact of regeneration on the refrigeration coefficient, and learn to properly use the regenerator to improve refrigeration efficiency; master the methods and principles for measuring the calorimeter heat leakage coefficient; and learn to use the R22 pressure-enthalpy diagram to analyze normal operating conditions, saturated operating conditions, and supersaturated operating conditions of refrigeration systems.
♥ 1. Designed with professionalism, the device can measure both the compressor refrigeration coefficient and the overall unit refrigeration coefficient.
♥ 2. It supports experimental operations with and without heat recovery, enabling comparative analysis.

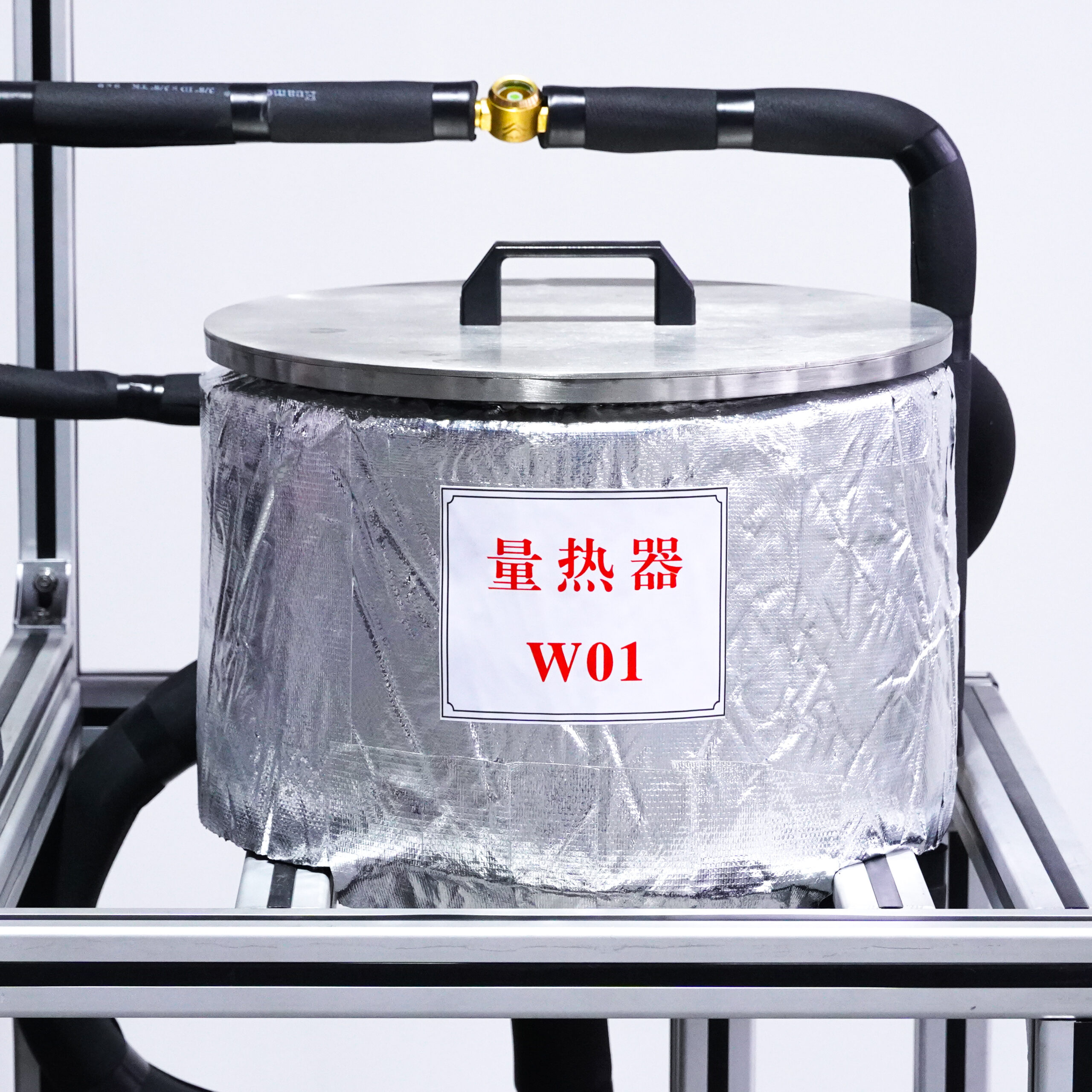

♥ 3. The heat leakage coefficient of the calorimeter can be measured and calibrated.
♥ 4. The secondary refrigerant used in the device is environmentally friendly and non-toxic.

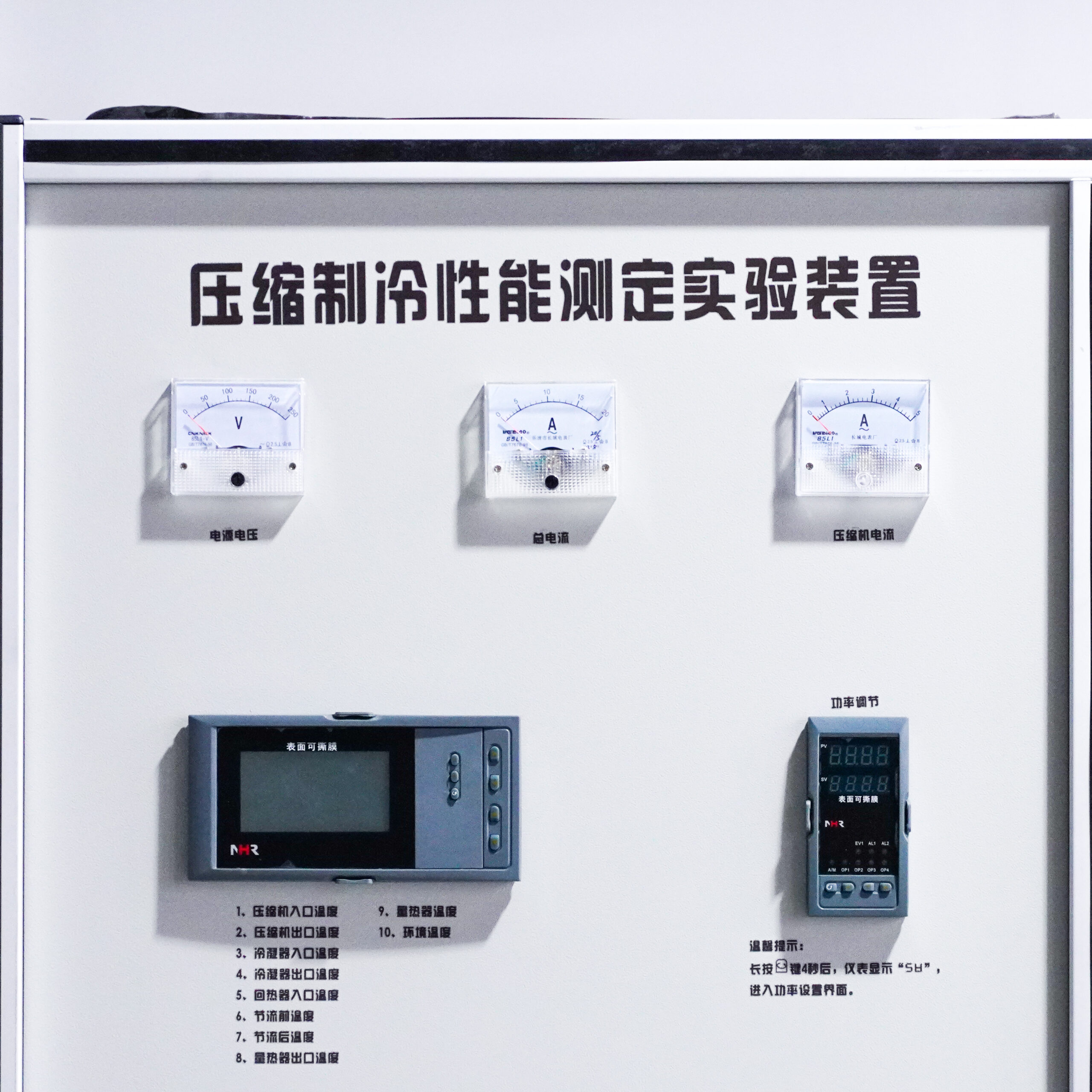

♥ 5. Real-time synchronous display of operating conditions at all monitoring points is achieved.
♥ 6. Equipment appearance and dimensions: The device is constructed with a high-quality aluminum alloy frame and casters, with overall dimensions no larger than 1480mm×580mm×1780mm (length×width×height).
