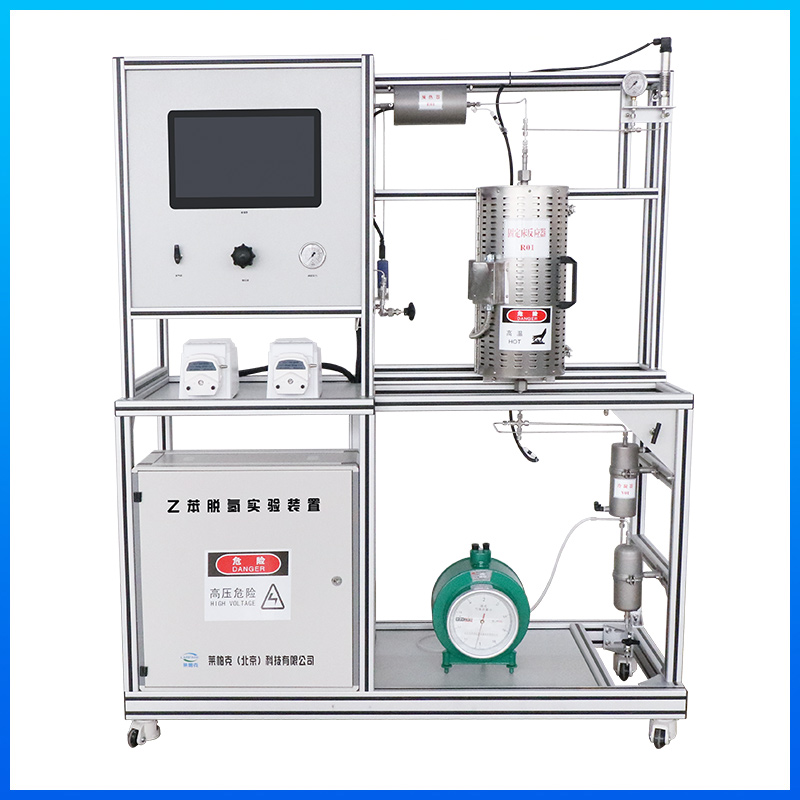

Ethylbenzene Dehydrogenation Experimental Device
Through this device, students can master the structure and process flow of gas-solid catalytic experimental devices; they can also master the determination and evaluation of the activity of iron oxide-based catalysts, and regenerate deactivated catalysts by activating with steam to remove coke.
♥ 1. The device consists of a reaction system and a control system.
♥ 2. It is equipped with a fixed-bed tubular reactor.

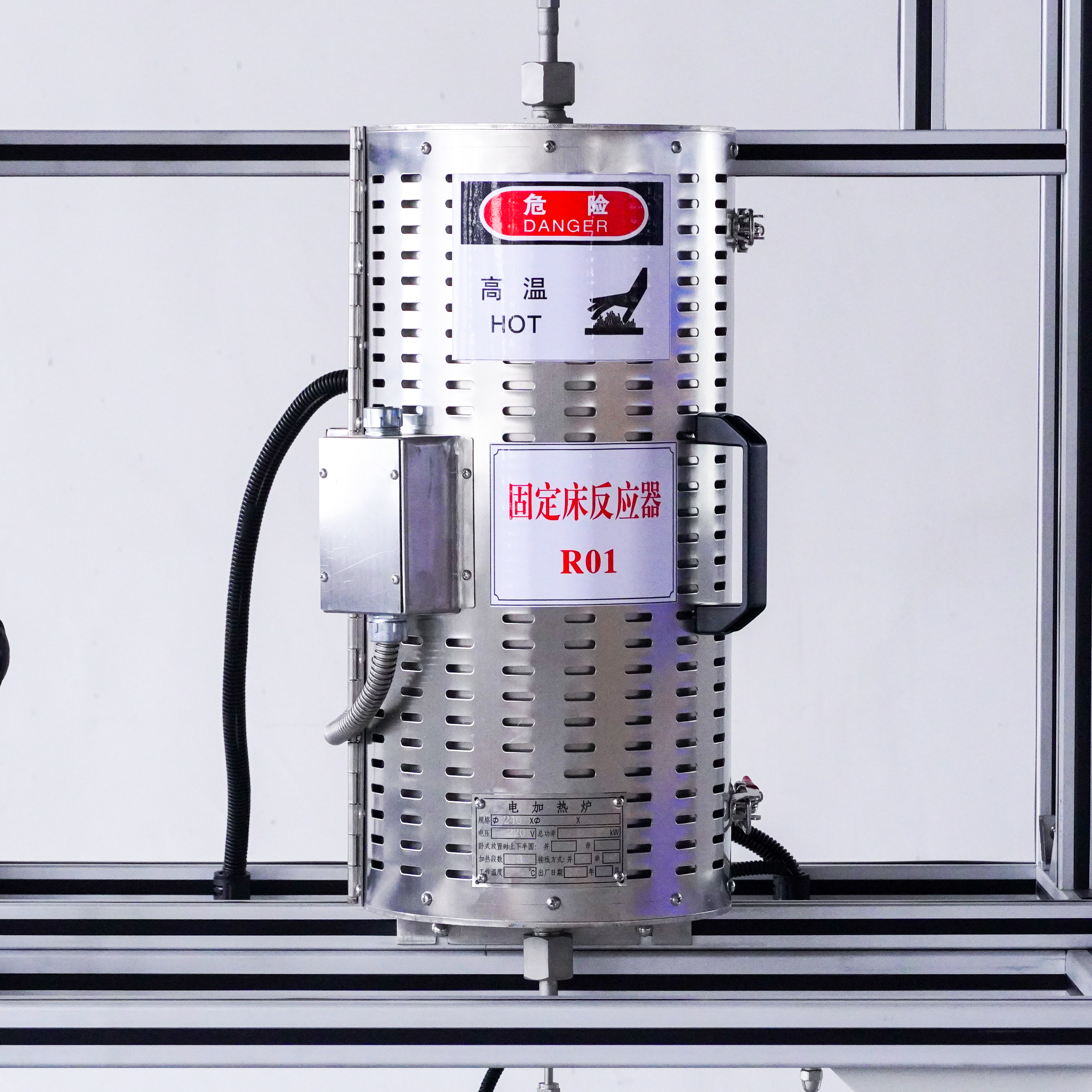

♥ 3. The device prioritizes safety, featuring over-temperature and over-pressure alarm functions. The heating furnace adopts programmable temperature control, is designed as an open-type furnace with easy opening and closing, and facilitates the disassembly and assembly of the reactor.

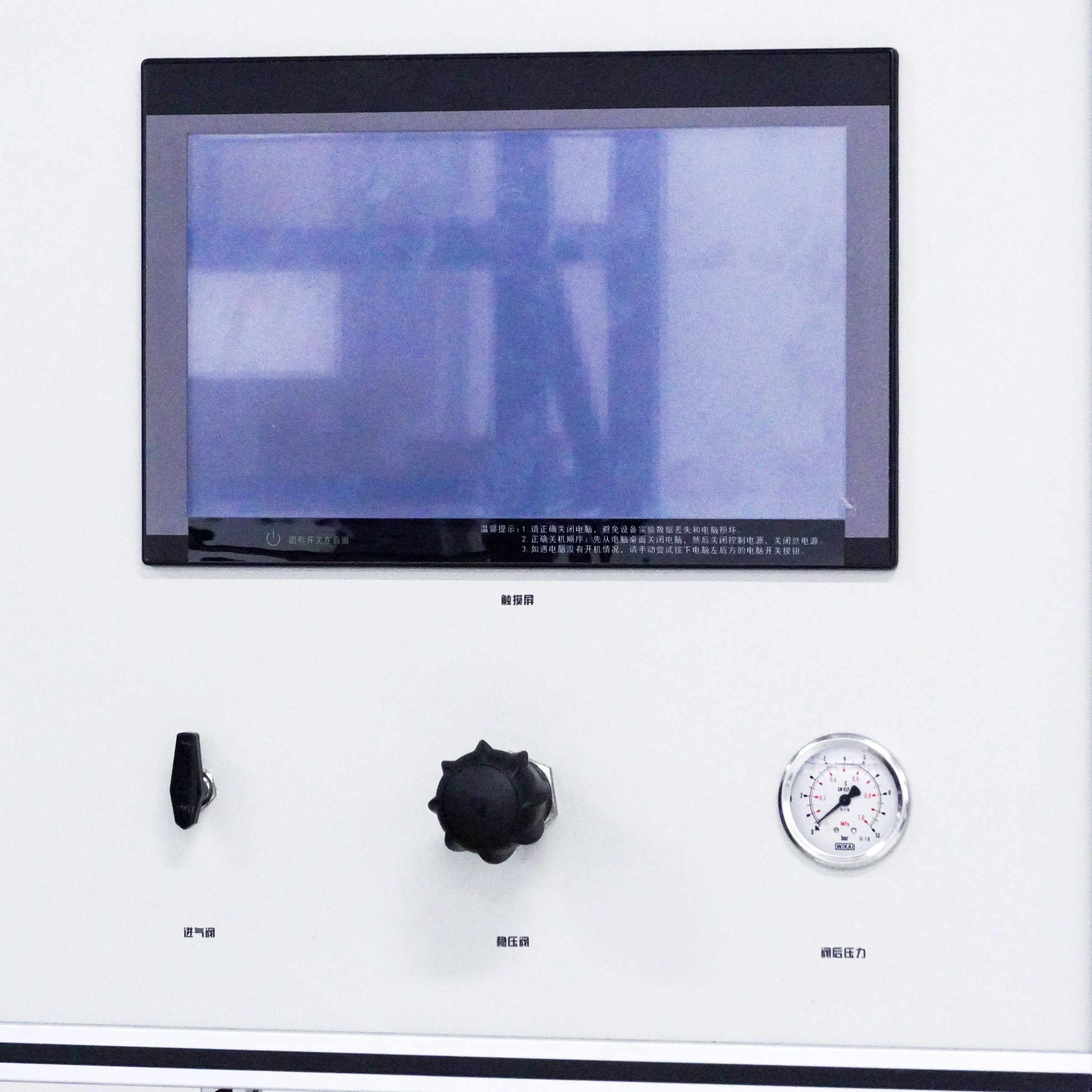

♥ 4. The device fully reflects technological advancement by utilizing an industrial all-in-one computer for control and data display, enabling students to gain early exposure to industrial control knowledge and enhancing their ability to use modern tools.
♥ 5. Equipment appearance and dimensions: The device is constructed with a high-quality aluminum alloy frame and casters, with overall dimensions no larger than 1480mm×580mm×1780mm (length×width×height).
