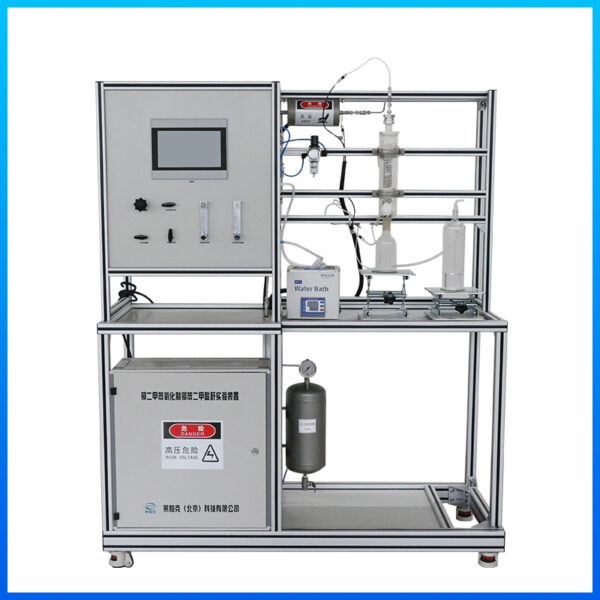

o – Xylene Oxidation to Phthalic Anhydride Experiment Device

​​Specialized System for o-Xylene Oxidation​​

Focused on the oxidation of o-xylene to phthalic anhydride, suitable for fixed-bed tubular reaction processes.

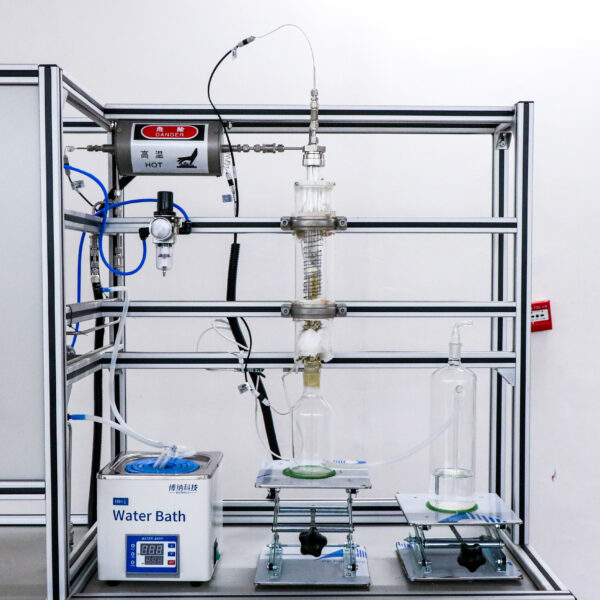

​​High-Temperature Glass Reactor​​

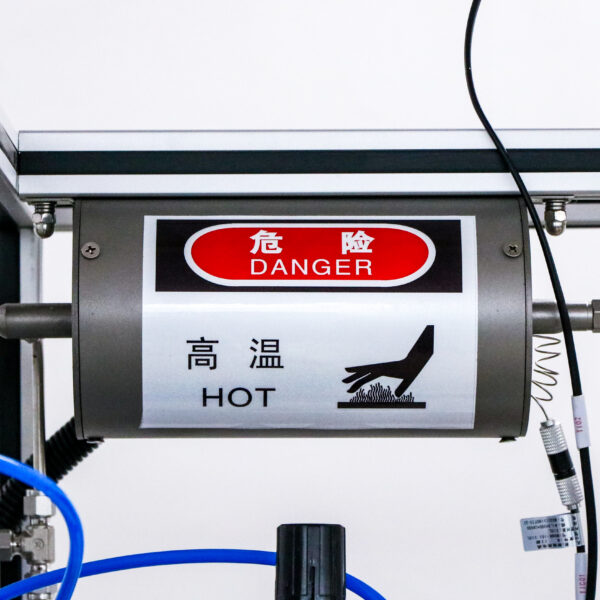

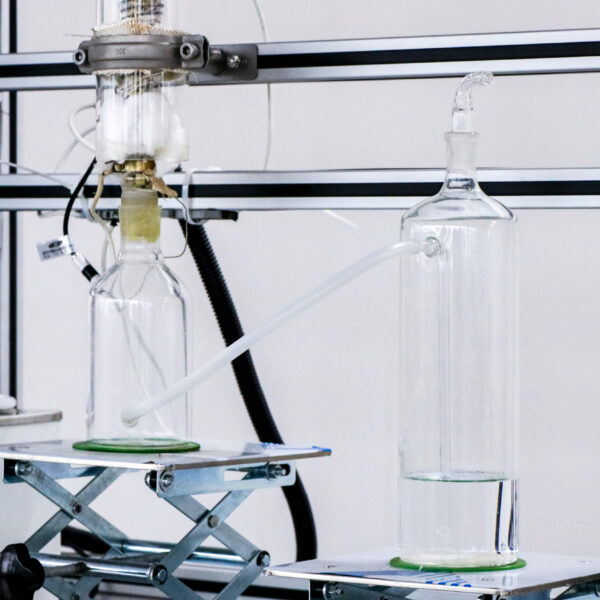

Features a 20mm inner diameter glass tube, resistant to temperatures up to 500°C, operating at atmospheric pressure, and equipped with a preheater and trapping device.

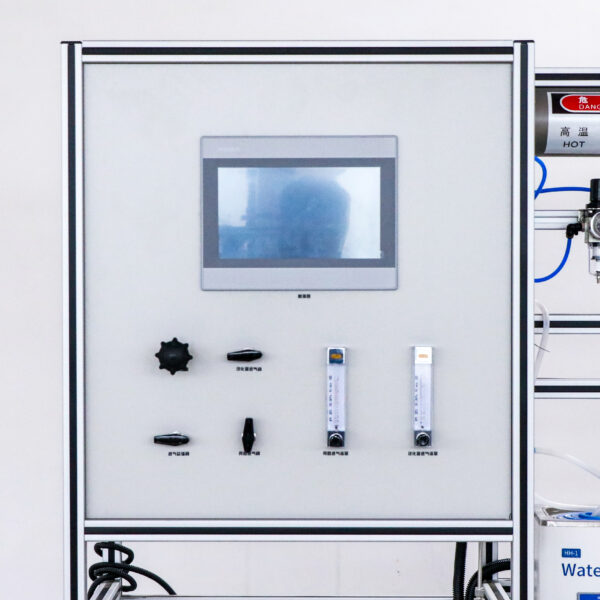

​​Intelligent Programmed Temperature Control System​​

Adopts integrated modular control, monitors reactor temperature (with an accuracy of ±1°C), and includes an over-temperature alarm function.

​​Safety Monitoring and Buffering Design​​

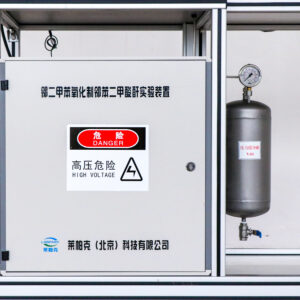

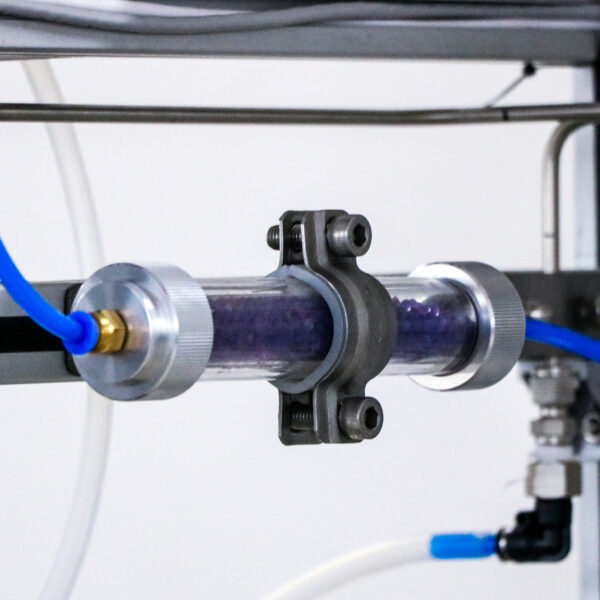

Equipped with thermocouples, pressure gauges, a 5L buffer tank, and an air filtration system to ensure experimental stability.

​​Compact and Mobile Structure​​

Constructed with an aluminum alloy frame and adjustable casters, with dimensions of 1480mm×580mm×1800mm.
