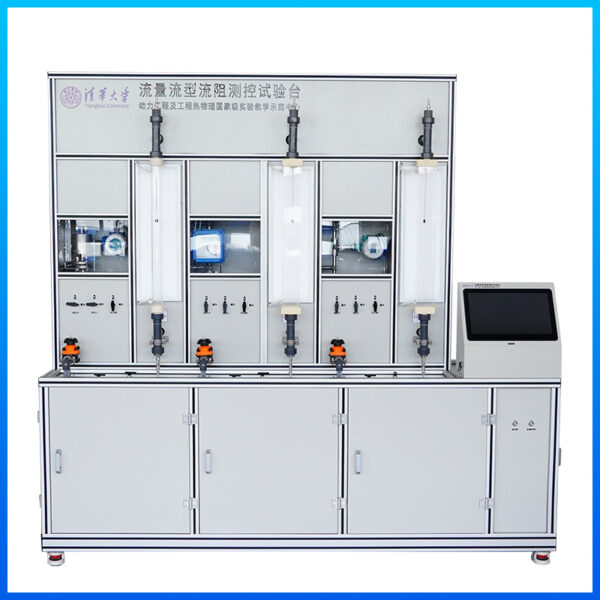

Flow – Rate, Flow – Pattern, and Flow – Resistance Measurement and Control Experimental Table

​​Experimental Functions:​​

Capable of measuring parameters such as flow velocity, flow rate, and flow resistance of gas-liquid two-phase flows, while observing the flow patterns of the experimental medium; enables comparison of flow patterns between the experimental medium with internal flow disruptors and within experimental sections of different shapes (circular, square, rectangular).

​​Material and Craftsmanship:​​

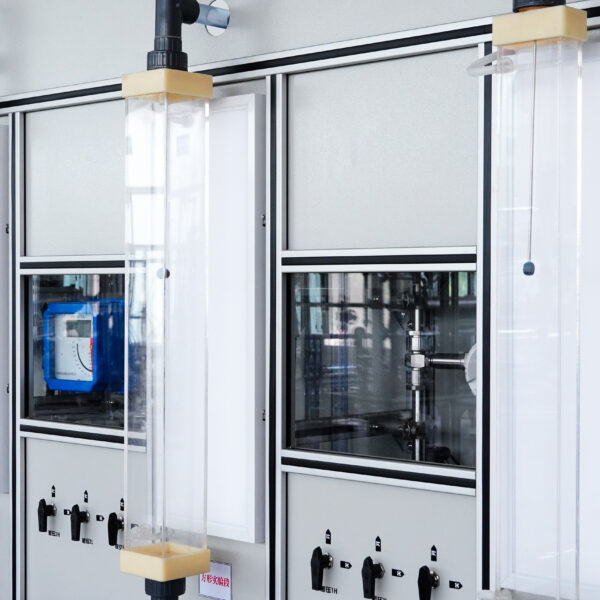

The experimental section is made of transparent acrylic glass for easy observation of experimental phenomena; components such as the circulation water tank are constructed from corrosion-resistant materials to prolong the service life of the equipment.

​​Core Structure:​​

• Equipped with three experimental sections of different shapes (rectangular, square, circular) that allow internal installation of flow disruptors for comparative experiments.

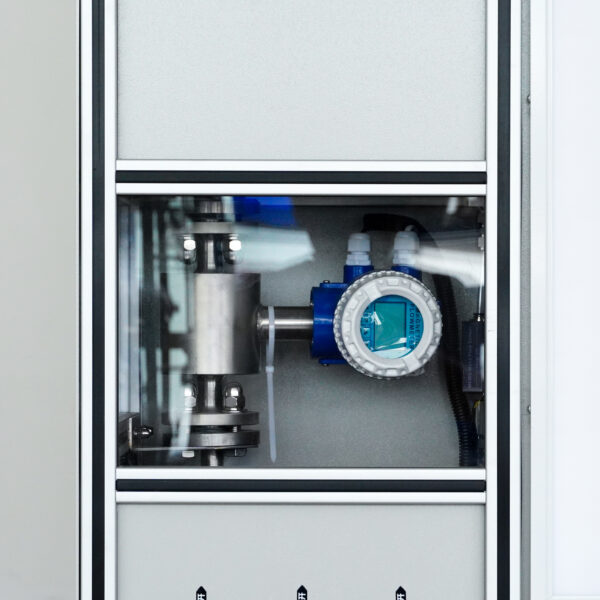

• Utilizes different types of flow meters for precise measurement of liquid flow rates.
• Integrates a gas control system to provide a stable gas source and measure gas flow rates.

​​Data Acquisition System:​​

Adopts a computer remote transmission method to realize real-time collection and display of experimental data.

​​Safety Protection:​​

• The experimental medium is typically water and air (non-toxic and harmless), ensuring the safety of personnel.
• The experimental section is equipped with a differential pressure transmitter to monitor pressure changes in real time, preventing accidents caused by excessive pressure.

​​Intelligent Configuration:​​

A 15.6-inch touchscreen integrated with 5G/Bluetooth enables real-time data monitoring and cloud storage.

​​Application Scenarios:​​

Teaching experiments; scientific research and development; laboratory research.
