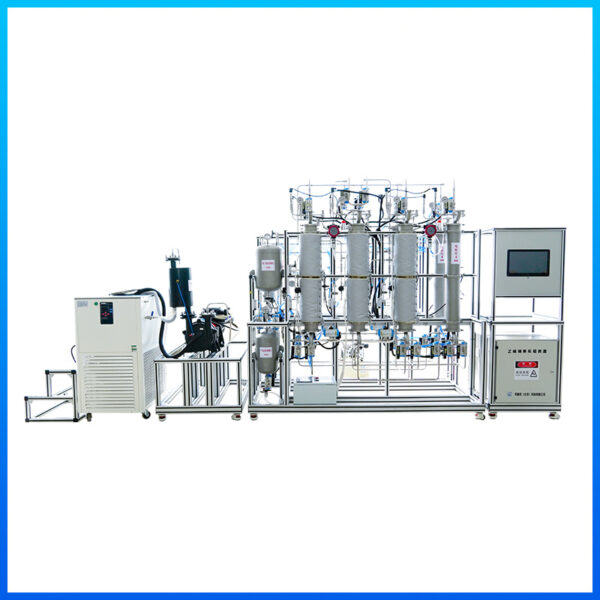

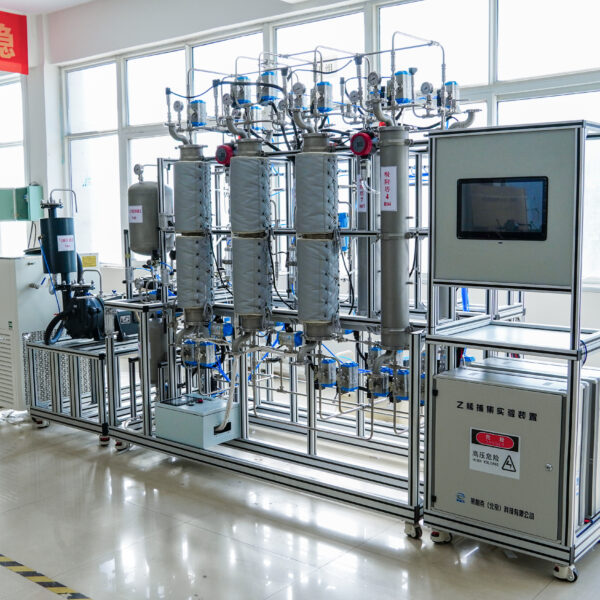

Ethylene Capture Experiment Device

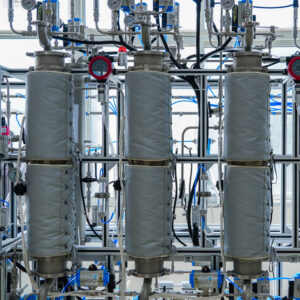

​​Eight-Tower Pressure Swing Adsorption Process​​

Utilizes eight towers for pressure swing adsorption, capable of processing nitrogen/ethylene/ethane mixed gas (80/10/10 ratio).

​​Pressure Buffering and Precise Control​​

Equipped with 5L/10L buffer tanks, mass flow meters, a 12-channel electrical control system, and a 15.6-inch touchscreen terminal.

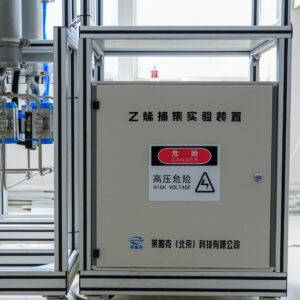

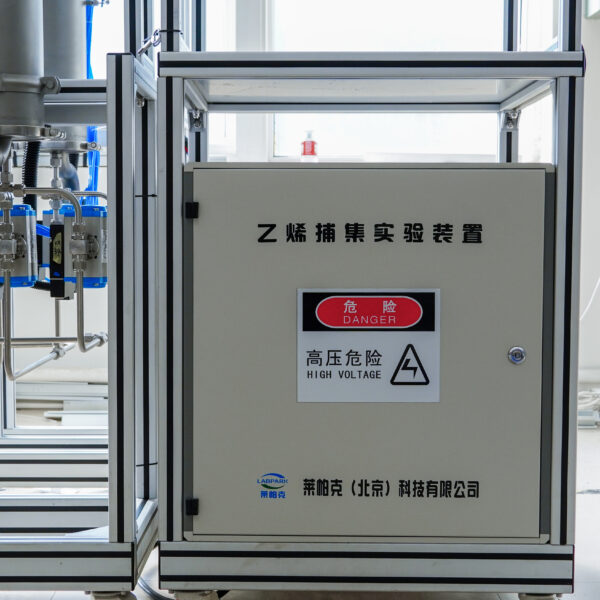

​​Intelligent Integrated Electrical Control System​​

Features a 12-channel slot module compatible with multi-signal modules, enabling monitoring of 24 channels of signals.

​​Full Parameter Monitoring Configuration​​

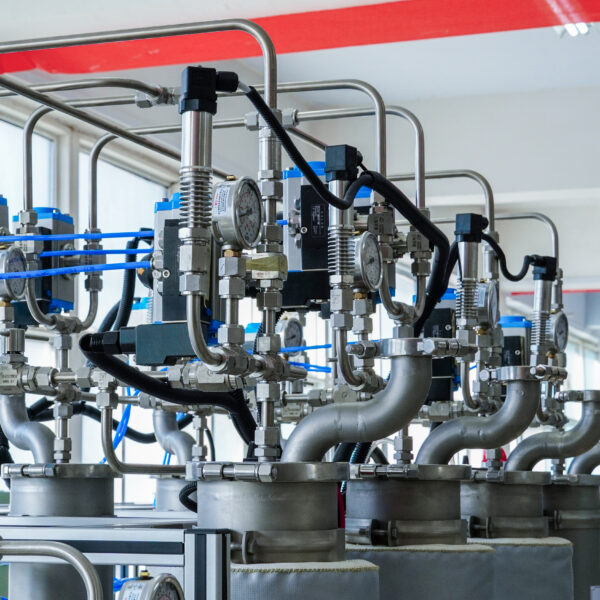

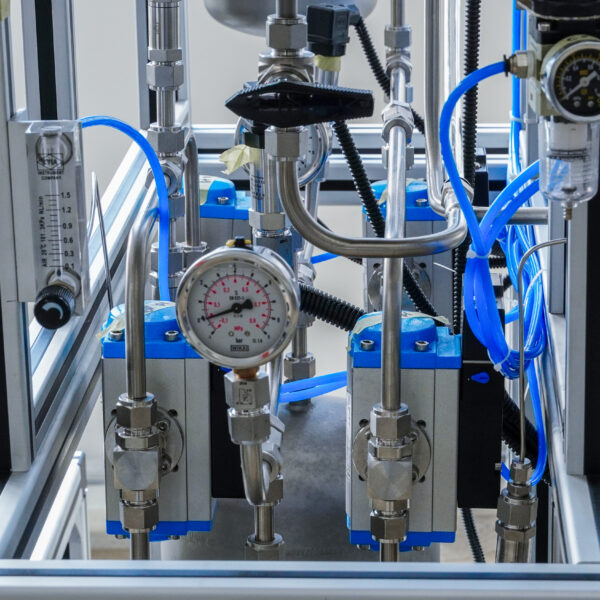

Includes temperature sensors (with a division of 0.1°C) and pressure sensors/gauges for real-time monitoring.

​​Sturdy and Portable Structural Design​​

Constructed with an aluminum alloy frame and adjustable casters, with dimensions ≥2200mm×1120mm×1800mm (length×width×height).
