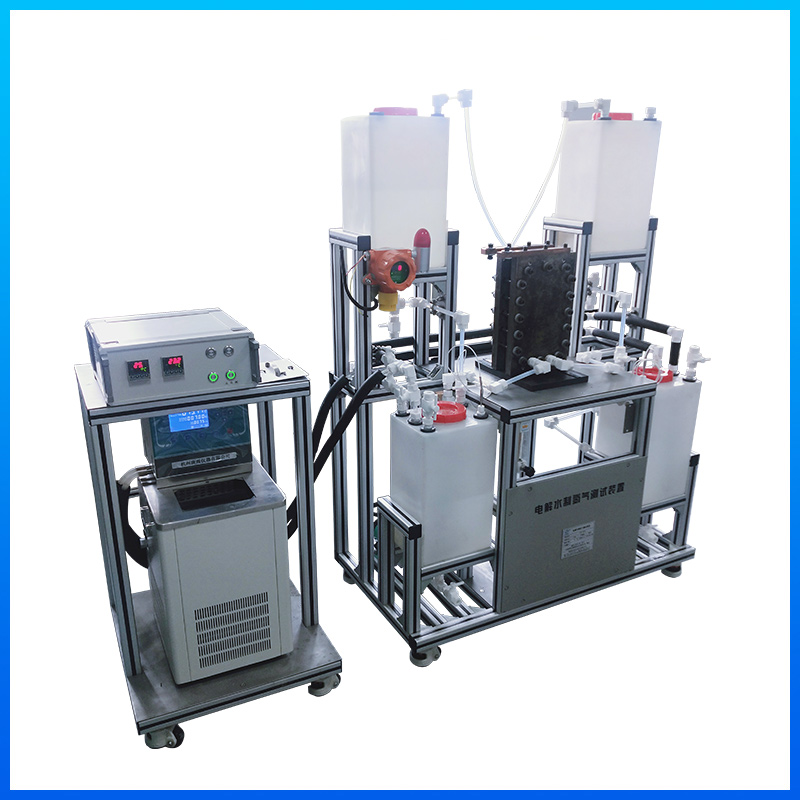

Electrolytic Hydrogen Production Device

​​Experimental Functions:​​

• ​​Electrolytic Hydrogen Production​​: Tests the water electrolysis hydrogen production process and helps understand the device structure.
• ​​Flow and Temperature Control​​: Adjusts flow rate and temperature to precisely control experimental conditions.

​​Material and Process:​​

Constructed with an aluminum alloy frame.

Instruments: Corrosion-resistant magnetic pumps, rotameters, and PTFE valves.

​​Core Structure:​​

• ​​Storage Tank Pump​​: Each acid and alkali storage tank is equipped with a magnetic pump.
• ​​Electrolytic Cell​​: The core component for water electrolysis.
• ​​Gas-Liquid Separation​​: A high-level storage tank separates hydrogen from liquid.

​​Safety Protection:​​

• ​​Corrosion Resistance​​: Uses corrosion-resistant materials to prevent corrosion.
• ​​Hydrogen Alarm with Interlocking Alert​​: Ensures safety through hydrogen detection and linked warnings.

​​Intelligent Configuration:​​

High-precision temperature control instrument for real-time data monitoring.

​​Application Scenarios:​​
Scientific research and development; laboratory research.
