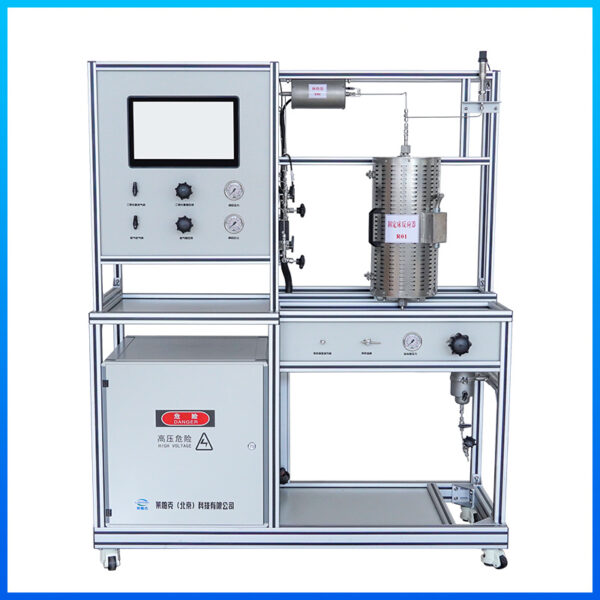

Carbon Capture – Methanol Synthesis Section from Carbon Dioxide and Hydrogen

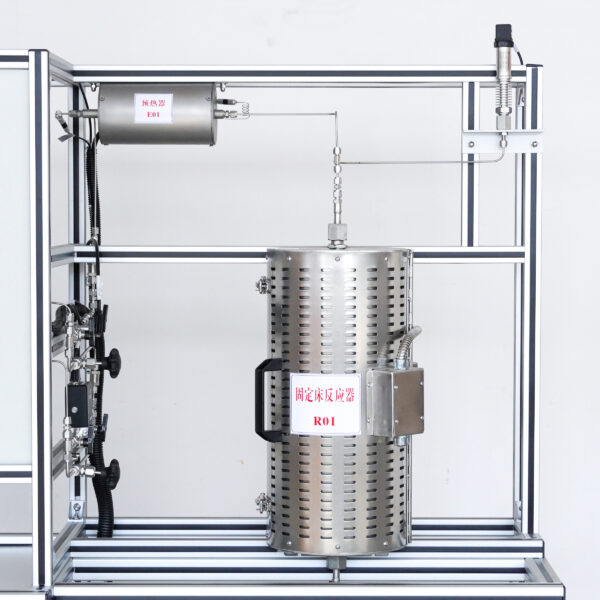

​​Fixed-Bed Tubular Reactor Design​​

Equipped with a copper-based catalyst in a 316L reactor, suitable for operating conditions of up to 3 MPa and below 500°C.

​​Three-Stage Precise Temperature Control System​​

Features three-stage temperature control via electric heating furnaces (0-500°C) with a hollowed-out outer shell design for convenient opening and closing.

​​High-Temperature and High-Pressure Methanol Synthesis Capability​​

Supports methanol synthesis from CO₂ and H₂ with a pressure capacity of up to 3 MPa, meeting industrial-scale reaction requirements.

​​Intelligent Monitoring and Control​​

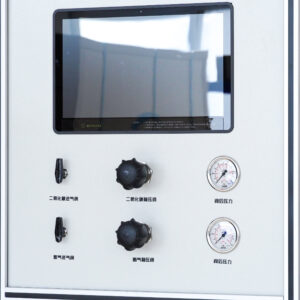

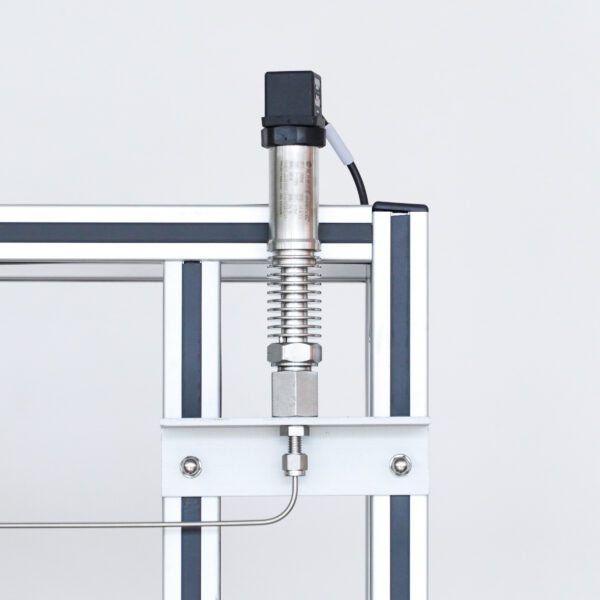

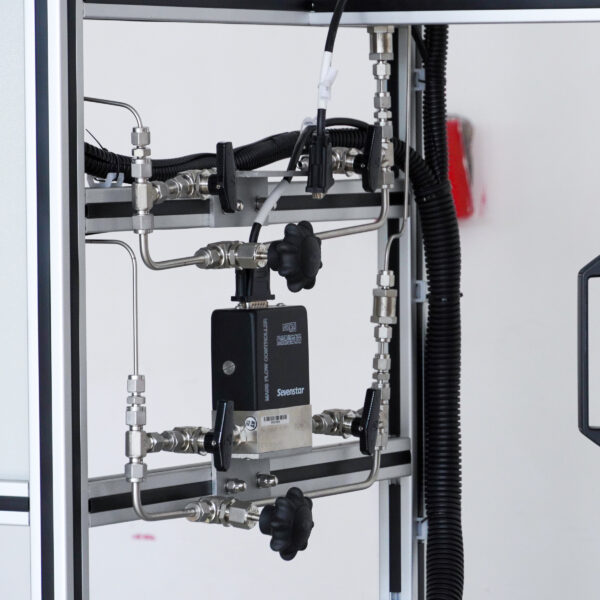

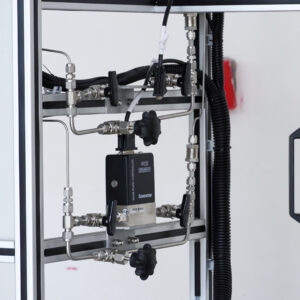

Integrates dual mass flow meters, real-time monitoring via thermocouples/pressure sensors, and regulation via a 15.6-inch terminal.

​​Compact and Portable Structure​​

Constructed with an aluminum alloy frame and adjustable casters, with dimensions: 1480mm×580mm×1800mm.
