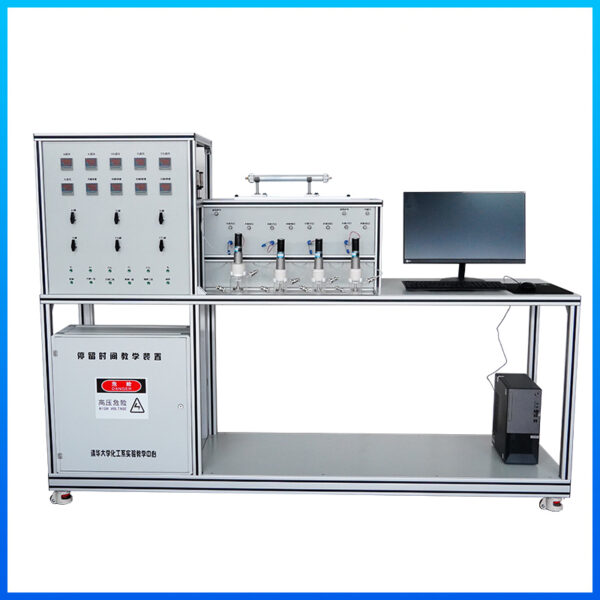

Gas – Phase Mixing Teaching Device

​​Multi-Method Determination System​​

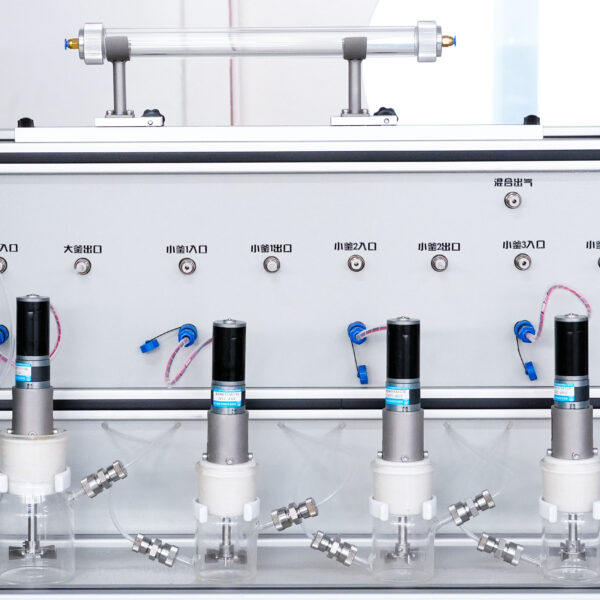

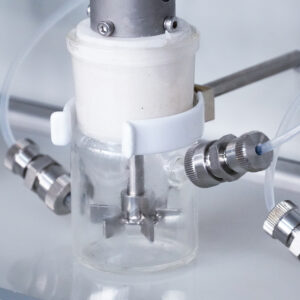

Supports pulse tracer method and step method, capable of measuring residence time distribution (RTD) in kettle-type and tubular reactors.

​​Modular Flexible Design​​

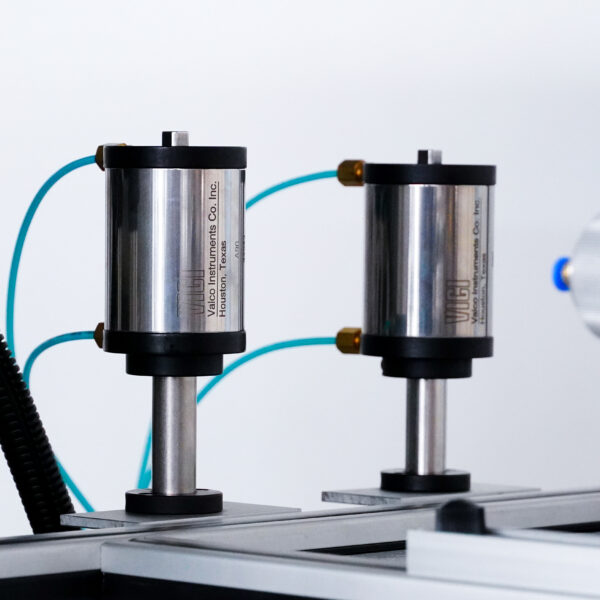

Test components are modularized for quick integration into the system; equipped with pneumatic six-way/four-way valves and 316L/PTFE pipelines.

​​High-Precision Data Monitoring​​

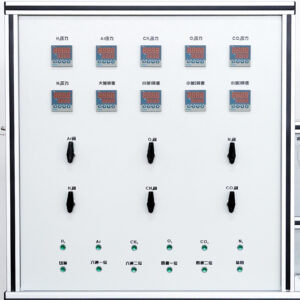

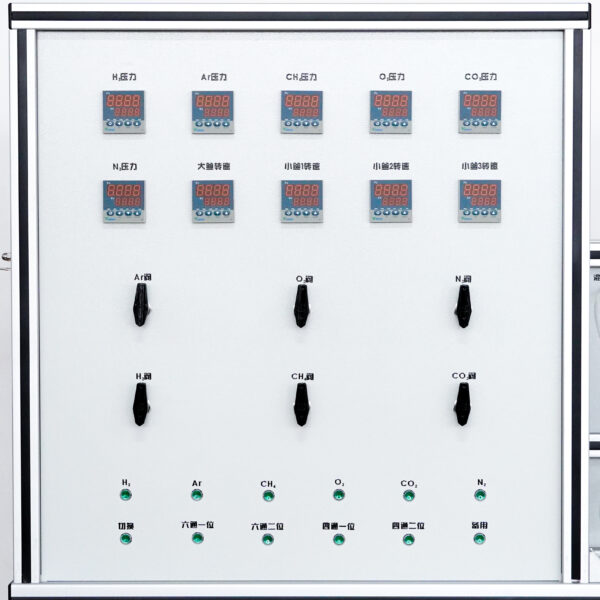

Integrates 6 pressure sensors, digital display instruments, and a Win10 computer terminal to ensure accurate and reliable data.

​​Intelligent Integrated Control​​

The main control module supports signal modules (e.g., PT [pressure transmitter], TC [thermocouple], AD [analog-to-digital]); equipped with self-check software, providing dual data display and storage functions.

​​Durable Mobile Structure​​

Aluminum alloy frame with adjustable casters; dimensions ≤2200×580×1600mm (length×width×height).
